CSCI 112
Lab 6 - Multiple File Compilation
Objectives:
- Solve a hospital supply problem using a C program.
- Understand differences between passing parameters
"by value", and "by reference".
Readings:
- Read Chapter 6 in the Hanly/Koffman text.
-
Deliverables: (DUE BY MIDNIGHT ON 02/24/2013)
- Submittal of the following files:
- Makefile
- proto.h
- lab6.c
- get_problem.c
- get_rate_drop_factor.c
- get_kg_rate_conc.c
- get_units_conc.c
- fig_drops_min.c
- fig_ml_hr.c
- by_weight.c
- by_units.c
TO DO (for today's
lab)
- Design and Write a program to solve Programming Project
#2 on pages 364-366 (pages 333-335 in the 6th edition, pages 321-323
in the 5th edition) of the Hanly/Koffman text.
- You will need to build 11 separate source files (listed
above!) and modify your Makefile to properly rebuild the
run image. Here is more info on
linking the source files.
- File proto.h should include
prototypes of all functions mentioned in your textbook. Here is more info on the role of proto.h.
- Use redirection to enter your data for all five
different types of runs. Go ahead and prompt for these values. This will
allow you to hand test your program before submittal.
- Make sure to test your program thoroughly. You may use
testing files and use input/output redirections to perform the tests, as
we do when checking your work. Here is more
info on this topic.
- Note: There will be quite a few prompts coming out of your
program. You will need to have them formatted exactly as shown in the text
to be sure that our tests script run properly. I know it is a pain in your
... neck, but it speeds up the grading significantly (think in "55 students
to 1 grader" scale...) and is actually quite a common requirement in
real life (e.g. formatting of printed reports in large database systems).
- Use integers for all parameters except the rate in
mg/kg/hr (job no.3 in your project) which will need to be a float.
- Be careful about implementing each function properly so
that it fulfills the "pass by value" or "pass by
reference" requirements specified in the problem definition. "pass by reference" is mentioned as output
parameters in your text book.
- Comment your code appropriately. We would like to see
characterization of function, variables, Pre- and Post-conditions, and
etc. for every function you write. I hope you already know what to do. If
not go back to Chapter 3 and have a nice reading... :)
- Your program should output an error message if the
choice is anything other than (1-5). The error message needs to have the
following format:
- Unexpected
input parameter. Please, behave or I am going to have a talk with your
Mama!
- You do not need to submit your sample data file. We
have test data files for the automatic script to use to test your program.
Each of the files test all four problems and then
terminate with a problem choice of 5.
- And now study the hints below... :)
Helpful Hints (I
put graphics below, so you would not just copy this stuff...)
- Declaring
prototypes in a header file
- Linking the source
files
- Testing the program
- Formatting the output
Declaring prototypes in a header file

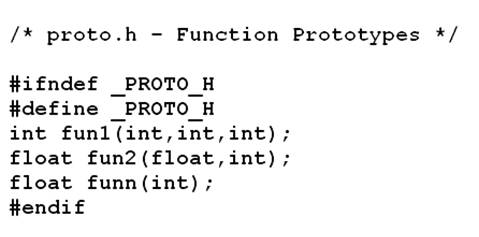

I like to put all my prototypes in a separate file (here, I called it proto.h) and then to include this file in my main program (#include “./proto.h”). When you do it this way, you may need some additional pre-processor directives to avoid duplications of your declarations (just to play it safe...). This time, file proto.h should include prototypes of all functions mentioned in your textbook (p. 322). Here is a sample proto.h file (I included pre-processor directives to avoid accidental duplications of my functions' prototypes):

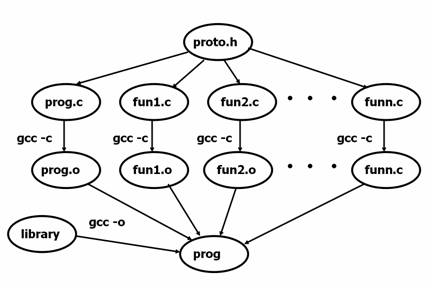

OK, so here is an example of what you want to do (using your Makefile):

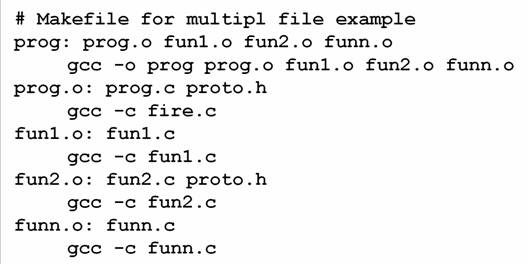

And here is how you can get there:
References to proto.h in the Makefile can be omitted, if you included it as I mentioned above. Repetitions do not bother us, since we used Conditional Compilation in our header file.
You can test your program by controlling it from your screen and keyboard.
For a test run of only problem 4 you can enter:
4
1000
25
5
The above data should produce the following results.
The rate in milliliters per hour is 40.

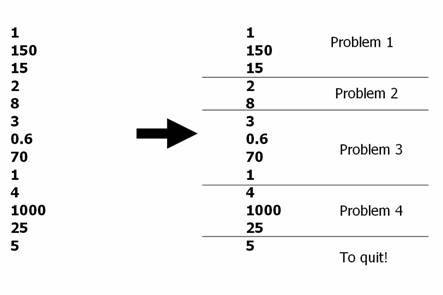

You can also write test files (with job selections and relevant data entries) and use input redirection. For instance if you enter to test numbers to your test file as presented on the left-hand side of the figure below, you can simulate some cases, as presented on the right-hand side of the figure.
To perform automatically more detailed tests, you can redirect BOTH input and output (type: lab6 < MyInput > MyOutput). MyOutput will NOT have the responses to the input prompts, just the prompts all run together.
There
will be quite a few prompts coming out of your program. You will need to have
them formatted exactly as shown in the text to be sure that our tests script
run properly. I know it is a pain, but it speeds up the grading significantly
so we are stuck with it. The following are two sample outputs. The first is
with normal blanks, and the second is with the long strings of blanks replaced
by small b's. This should help you count the spacing
of the expected output. I try to post more examples here shortly... Make sure
you match the outputs exactly! Good luck!
INTRAVENOUS RATE ASSISTANT
Enter the number of the problem you
wish to solve.
GIVEN A
MEDICAL ORDER IN
CALCULATE RATE IN
(1) ml/hr & tubing drop factor
drops / min
(2) 1 L for n hr
ml / hr
(3) mg/kg/hr & concentration in
mg/ml ml / hr
(4) units/hr & concentration in
units/ml ml / hr
(5) QUIT
INTRAVENOUS RATE ASSISTANT
Enter the number of the problem you
wish to solve.
bbbbGIVEN A MEDICAL ORDER INbbbbbbbbbbbbbbbbCALCULATE
RATE IN
(1) ml/hr & tubing drop factorbbbbbbbbbbbbbbdrops / min
(2) 1 L for n hrbbbbbbbbbbbbbbbbbbbbbbbbbbbbml
/ hr
(3) mg/kg/hr & concentration in
mg/mlbbbbbbbml / hr
(4) units/hr & concentration in
units/mlbbbbml / hr
(5) QUIT

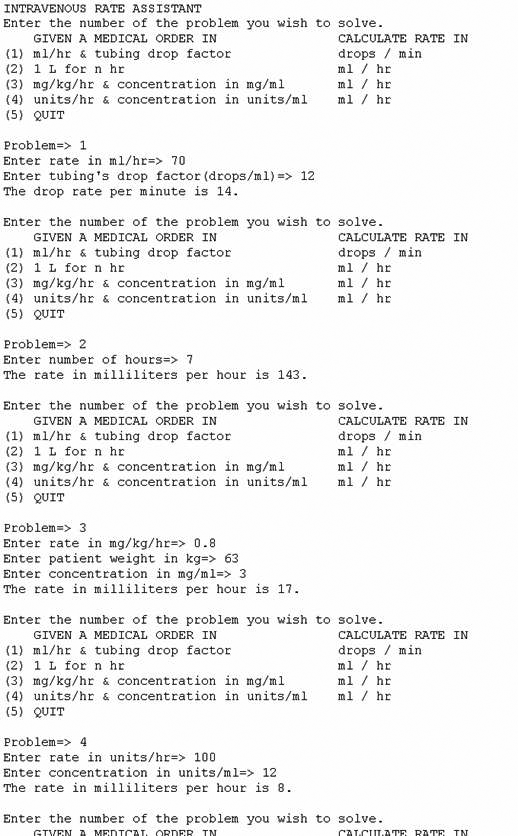

Here are some results I got, maybe you will find it useful when programming:
