Interpolators
Interpolators define a Dictionary from a key, ranging from 0.0
to 1.0, to a keyValue, which can take several
types of data depending on the Interpolator. All fields and events are equal
for all Interpolators, only the data type varies.
In VRML the
following interpolators are available:
Interpolators
have an eventIn, set_fraction , and an
eventOut value_changed.
These two events are wired together, i.e. when the node receives a set_fraction event it generates a value_changed event.
The set_fraction event specifies a key value, the value_changed
event outputs the data, specified in keyValue
which corresponds to the key value given.
Interpolators
combined with TimeSensors can be used to create animations, color
variations, morphing objects, etc.... In each of the interpolator nodes, listed
at the beggining of this section, an example will be
provided.
One of the
events generated by the TimeSensor node is the fraction_changed
event. This event can be linked to the set_fraction
event from the interpolator using a ROUTE.
The interpolator will in turn generate the event value_changed.
This event can then be routed
to an exposed field of another node, for instance the color field of the
Color node. The end result of this series of ROUTES

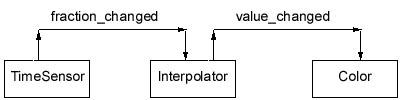

is that the color of a given shape will change over time. The following figure
shows the chaining of events between the nodes (read the figure from left to
right):
Here is a short disscussion of the fields present in all interpolators, key
and keyValue, is presented. For instance
consider that the following values for key and keyValue
are given:
·
key [0 1]
·
keyValue [-0.5 0.5]
If the set_fraction event inputs 0 then the value_changed event outputs -0.5. Similarly when the
set_fraction event inputs 1 then the value_changed event outputs 0.5.
So what
happens when the set_fraction event inputs
0.3? Well, it is time to look at the title of this section. The nodes being
dealt with in here are interpolators, so when 0.3 is inputed,
the output will be -0.2, i.e. the value which would correspond to the key 0.3
if all possible pairs ( key, keyValue)
were specified and assuming that the pairs mentioned correspond to a straight

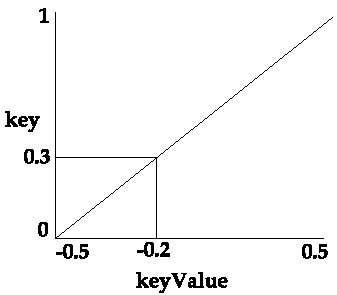

line. The following figure shows how the keyValue for
key 0.3 was computed.
The above
example is a very simple one, you just specify two values for the key and the
interpolator node does the rest.
This is OK
if you want to specify a linear relation between key and keyValue. However there are situations when the
desired relation is not linear.
You can
specify as many elements as desired in the key and keyValue
lists, note however that the lists must have the
same length.
For
instance consider that the following values for key and keyValue
are given:
·
key [0
0.5 1]
·
keyValue [-0.5 0.0 -0.5]
The above
figure represents the line segments which define the interpolator. In this
example, a key of 0.3 and a key of 0.7 correspond to the same keyValue.
By using a
larger number of points you can approximate a curve.
#######
# #http://www.cs.montana.edu/hunterl/vrml/cs525/525sensor.wrl
#VRML V2.0 utf8
######################################################
# SENSORS
#The
following is going to be an example of basic
# events
and routing in VRML. It will use a sensor
# to
send events down a route for a particular action to
# take
place.
#I also included an example
of a Time sensor.
######################################################
Group {
children [
DEF TS TouchSensor
{
#enabled TRUE
#hitNormal_changed
#hitPoint_changed
#hitTexCoord_changed
#touchTime
#two more I used here are below in
routing
}
Shape {
appearance Appearance{
material DEF MAT Material {
diffuseColor 0
.5 0
}
}
geometry
Sphere{}
}
DEF Clock1 TimeSensor
{
cycleInterval 5.0
enabled
TRUE
loop TRUE
startTime 1.0
stopTime 0.0
#cyleTime
(an event that is sent out every interval)
#fraction_changed
#isActive
#time
}
DEF Highlight DirectionalLight
{
color 1 1 1
on FALSE
}
DEF ActiveLight
DirectionalLight {
color 0 0 1
on FALSE
}
DEF ColorPath ColorInterpolator{
key [ 0.0,
0.5, .5, 1.0 ]
keyValue
[
0.0 1.0 0.0, 1.0 1.0 0.0,
0.0 0.0
1.0, 0.0 0.0
1.0,
]
}
]
}
ROUTE TS.isOver TO Highlight.set_on #When the mouse is over the touch sensor the light comes on.
ROUTE TS.isActive TO
ActiveLight.set_on # when the touch sensor is active
the Active light is turned on.
ROUTE Clock1.fraction TO ColorPath.set_fraction
#When the clock ticks the colorpath
interpolator is changed.
ROUTE ColorPath.value_changed
TO MAT.set_diffuseColor
Another example of sensors, and timers working. This is a door that is shut
and opens and shuts when clicked on. When clicked on it goes to shut first if
not already shut then opens.
#VRML V2.0 utf8
DEF Touch TouchSensor { }
DEF Rotate Transform {
center -2 0 0
children Shape {
appearance Appearance {
material Material { }
}
geometry Box {
size 4 9 0.1 }
}
}
DEF OpenInterp
OrientationInterpolator {
key [ 0 1 ]
keyValue
[ 0 1 0 0, 0 1 0 -2 ]
}
DEF Open TimeSensor
{ cycleInterval 2 }
DEF CloseInterp
OrientationInterpolator {
key [ 0 1 ]
keyValue
[ 0 1 0 -2, 0 1 0 0 ]
}
DEF Close TimeSensor { cycleInterval
3 }
DEF S Script {
eventIn
SFTime touchTime
eventOut
SFTime startClose
url
"vrmlscript:
function touchTime(value) {
startClose = value + 4;
}"
}
ROUTE Touch.touchTime
TO Open.startTime
ROUTE Touch.touchTime
TO S.touchTime
ROUTE Open.fraction_changed
TO OpenInterp.set_fraction
ROUTE S.startClose
TO Close.startTime
ROUTE Close.fraction_changed
TO CloseInterp.set_fraction
ROUTE OpenInterp.value_changed
TO Rotate .rotation
ROUTE CloseInterp.value_changed
TO Rotate .rotation
#www.cs.montana.edu/hunterl/vrml/cs525/525view.wrl
#Animate the viewpoint
#VRML V2.0 utf8
DEF VP Viewpoint { position 0 0 10 }
Group {
children [
DEF Touch TouchSensor
{ }
Transform {
translation
2 0 0
children
Shape {
geometry
Cone{ }
appearance
Appearance {
material
Material {
diffuseColor 0 0.6 0
}
}
}
}
Shape {
geometry
Box { }
appearance
Appearance {
material
Material {
diffuseColor 0.2 0 0.6
}
}
}
]
}
DEF O OrientationInterpolator
{
key [ 0, 0.2, 0.4, 0.5, 0.6, 0.8, 1]
keyValue
[ 0 1 0 0, 0 1 0 0, 0 1 0
1.57,
0 1 0 3.14, 0 1 0 4.71, 0 1 0 0,
0 1 0 0 ]
}
DEF P PositionInterpolator
{
key [ 0, 0.2, 0.4, 0.5, 0.6, 0.8, 1]
keyValue
[ 0 0 10, 0 0 5, 5 0 0, 0 0 -5,
-5 0 0,
0 0 5, 0 0 10 ]
}
DEF Time TimeSensor
{
cycleInterval
20
}
ROUTE Touch.touchTime
TO Time.startTime
ROUTE Time.fraction_changed
TO P.set_fraction
ROUTE Time.fraction_changed
TO O.set_fraction
ROUTE P.value_changed
TO VP.set_position
ROUTE O.value_changed
TO VP.set_orientation
Here is a link to a tutorial on the VRML Scripting language….
http://www.lighthouse3d.com/vrml/tutorial/index.shtml?intro
