Program Development
A computer program (computer application)is a set of instructions
that directs a computer to perform tasks.
A computer programmer creates the instructions using a programming
language.
A programming language is a set of words, symbols, and codes
that enables a programmer to communicate instructions to a computer.
Creating a program
1. First you design the program, sometimes called pseudocode.
Pseudcode is writing out the program in plain English so it is easily understood
and the flow can be easily tracked.
2. Write the Source Code. Source Code is the
program written in the proper syntax for a particular programming language.
-

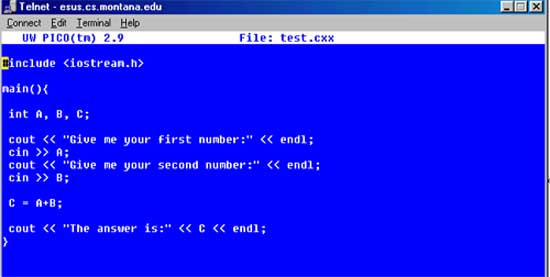

The following is source code written in C++ programming
language.

Next this source code must be put through a Compiler which
changes the source code into machine language that the computer (processor)
can understand. Machine language is the executable file that users such
as yourself run, like as in Word or Excel. Machine language cannot be understood
by reading it as a text file.
An explanation of the code above:
-
The first line is ..#include <iostream.h> .. is a library call
that allows the programmer to make system calls so it can print to the
screen and receive input from the keyboard.
-
main(){ --- This line lets the compiler know (see compiler above)
that this is the beginning of the program.
-
int A, B, C; --- This line sets up memory (RAM) for the variables
that will be needed later while the program runs.
-
cout << "Give me your first number:" << endl; ---
This line just prints the line "Give me your first number:" to the screen.
-
cin >> A; --- This line takes the input from the keyboard
and stores it in the memory set up for the variable A that was set up above.
-
cout << "Give me your second number:" << endl;
-- These next two lines do the same as the two lines above.
cin >> B;
-
C = A+B; --- These line adds the integers taken from the keyboard
above, sums the integers and stores them in the variable C.
-
cout << "The answer is:" << C << endl; ---
This line prints out the result.
The following is the program running. As you can see it is just
a text based program with no graphical user interface:

This is a very simple program, it should be noted that a program such
as Word can have millions of lines of code, with teams of programmers working
on all the different facets of the program.
Errors
There are two type of errors that programmers have to deal with when programming
-
Syntax or Compile time errors - These are errors that happen because
the programmer has done something wrong when typing in the source code.
-
These errors show up when the source code is put through the compiler application.
-
In the above code you can see every instruction ends with a semi-colon.
This tells the compiler this instructions is done and your ready to start
the next instruction. If the programer forgets the semi-colon the compiler
will get confused and generate an error without generating the machine
language.
-
These errors are easily found.
-
Run-time errors - These errors make the program fail while the program
is running.
-
These errors are usually much harder to find and sometimes are not discovered
until the program is commerially sold. Some of you might have even discovered
a run-time error when you get the pop-up screen "this program has completed
an illegal operation".
-
An example of an error that would only be discovered if the right combination
of actions happen could be shown with the program above.
-
If the program above would divide variables A and B instead of add them
then an run-time error could easily be seen.
-
If a user inputs a 5 for the variable 'A' and a zero for the variable
'B' then the equation would look like this:
-
This would be a divide by zero which is illegal in math. An illegal operation
such as divide by zero would cause a program to crash.
Control Structures
Control Structures - tell the programs which action
to take.
-
An example of a control structure - What if
if ( A > B) then
do this part of code
else
do this part of code
-
If you are playing a game and you make your character
turn right there is probably a control structure as above that says if
the players turns left then do something else if they go some other way
do the secod thing. Since you turned right the second thing would
be executed.
-
There are many different kinds of control structures, and different programming
languages haven't different versions of many different types of programming
languages.
- Every programming language has to have two control structures (most
have several versions of each).
- Iteration loop - that program will keep doing things over
and over
until a certain condition is met.
- The If statement above, if a certain condition exists do
something, if
it doesn't exist do something else.
Programming languages
Hundreds of programming languages exist, but only a handful are used
for most commercial applications that exists today.
-
Basic - One of the first programming languages used on personal
PC's, used by Bill Gates. It was originally a programming language teaching
tool, but it has since been developed to use in many other cases such as
creating business applications. A small version of Basic is used quite
often in forms and interactivity on the Web
-
Cobol - developed in early 1960's, but still used today mostly in
business applications.
-
C - developed in early 1970's. Many programs from business
aps to operating systems are written in C and it's newer extension C++.
-
C++ - produced about ten years of the original C, C++ is an extension
of the C programming language. This and Java are the two programming languages
that we teach here at MSU. C++ is an object oriented language which
is defined below and will be on the test.
-
Java - is another object oriented language, the key to Java
is it is platform independent. It is one of the most used programming languages
today.
Object Oriented approach to programming
It's the newest philosophy of programming. The philosophy is that a
programmer can create a piece of code (called a module) that completes
a task. If there is another program that needs that same task you can just
plug that module in to the new program.
My example to explain this philosophy is a kitchen. A kitchen has a
lot of parts that can run to make the area a kitchen for example a refridgerator,
a blender, a microwave, etc. etc.
If another kitchen is created the applicances that are needed such
as the microwave can be taken from the first kitchen and plugged into the
second kitchen. This is the philosophy of object orientation, take a module
of code from one program and plug it into the second program.
