CSCI 107 Assignment 8

• Due Date: Monday, April 24th no later than 11:59 p.m.
• Partner Information: You may complete this assignment individually or with exactly one classmate.
• Submission Instructions (working alone): Upload your solution, entitled YourFirstName-YourLastName-Assignment8.py to the BrightSpace Assignment 8 Dropbox.
• Submission Instructions (working with one classmate): Upload your solution, entitled YourFirstName-YourLastName-PartnerFirstName-PartnerLastName-Assignment8.py to the BrightSpace Assignment 8 Dropbox. Note: If you work with a partner, only one person needs to submit a solution. If you both submit a solution, the submission that will be graded is the one from the partner whose last name comes alphabetically first.
• Deadline Reminder: Once the submission deadline passes, BrightSpace will no longer accept your submission and you will no longer be able to earn credit. Thus, if you are not able to fully complete the assignment, submit whatever you have before the deadline so that partial credit can be earned.

Recursive Diamonds

The purpose of this assignment is to help you gain experience using recursion to solve problems. Examine the following five drawings until you understand the pattern:

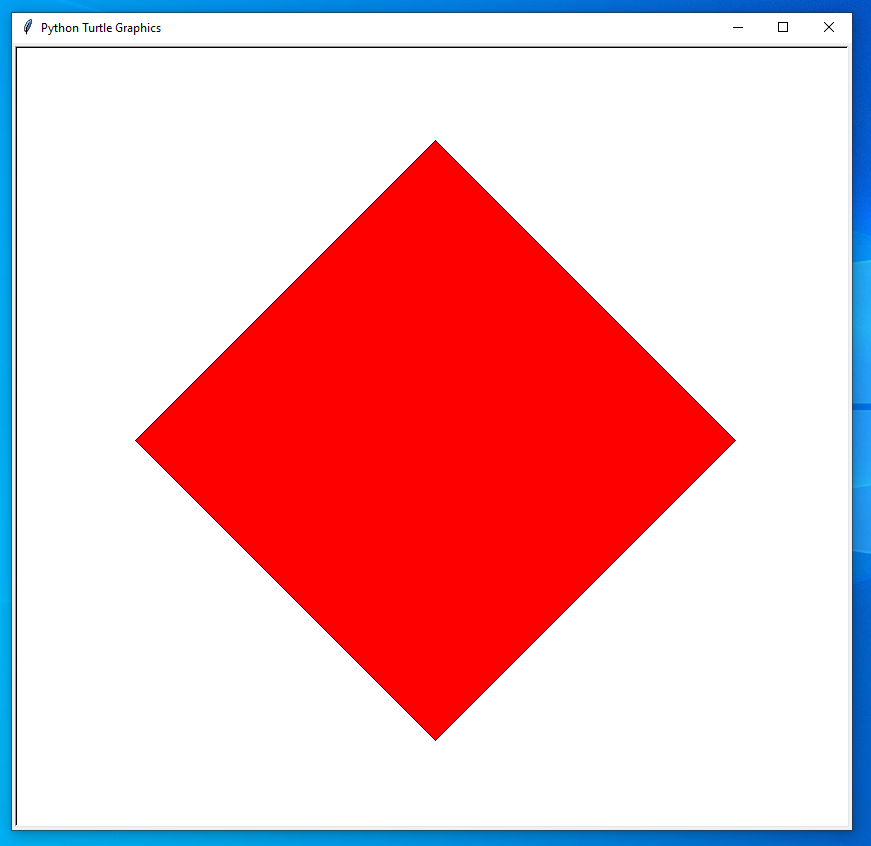

• Level 0: The base case. A single diamond appears.

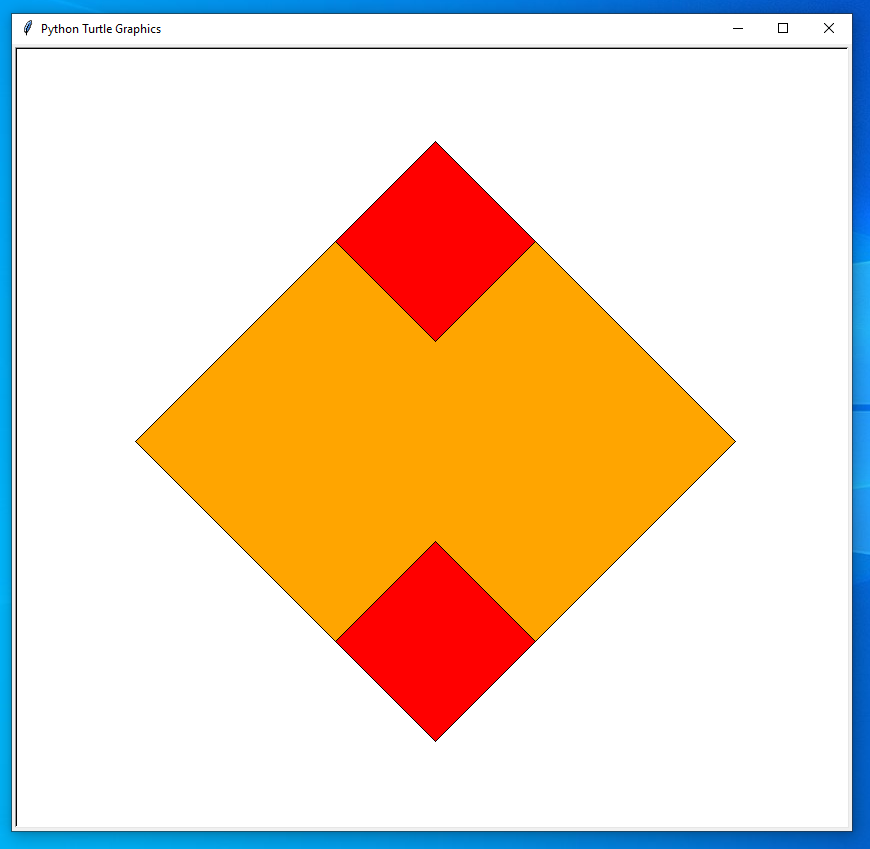

• Level 1: Two smaller diamonds are embedded in the large diamond. The distance between the top and bottom of each smaller diamond is 1/3 of the distance between the top and bottom of the large diamond. The upper smaller diamond shares its top point with the large diamond. The lower smaller diamond shares its bottom point with the large diamond. The two smaller diamonds are produced by recursive calls.

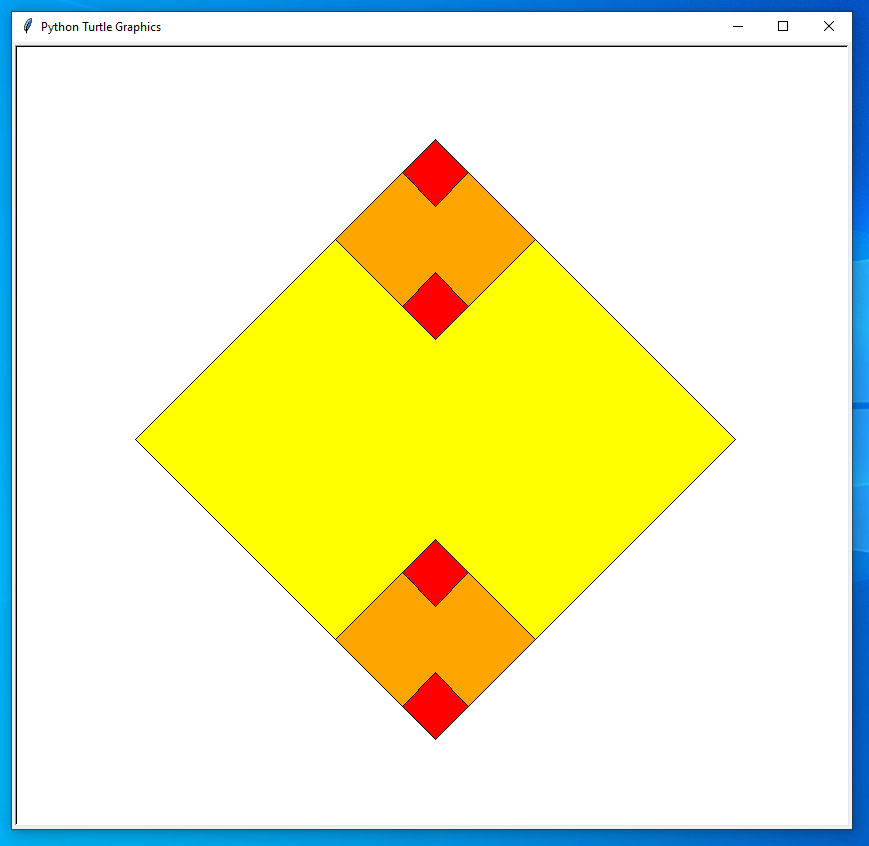

• Level 2: There are now three sizes of diamonds: large, medium and small. Two small diamonds are embedded in each medium diamond, just like each medium diamond is embedded in the large diamond.

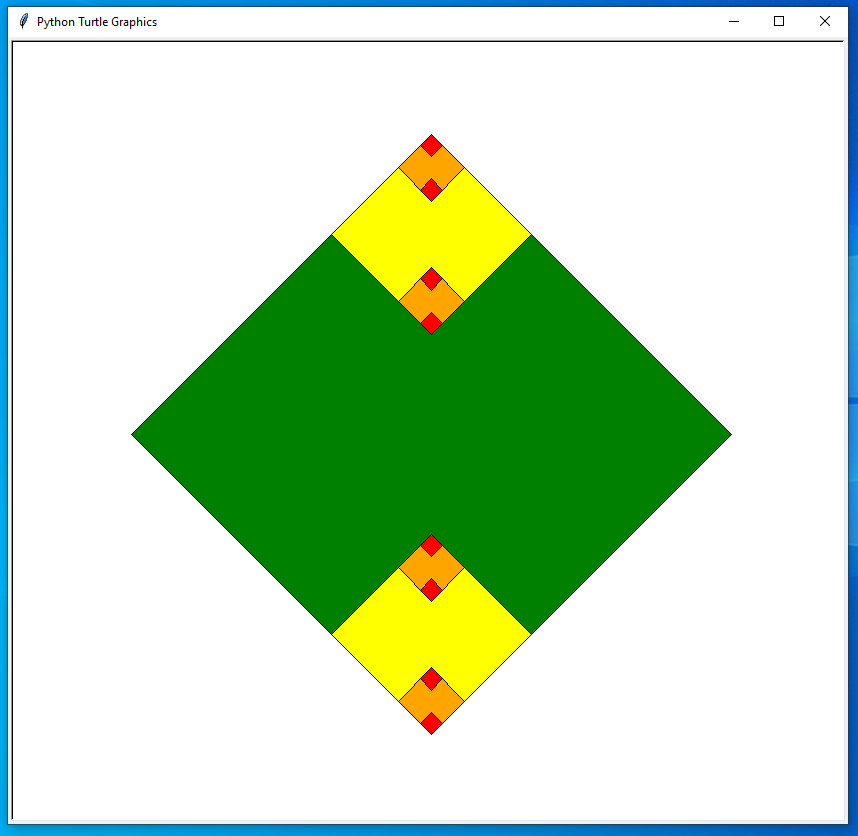

• Level 3: There are now four different sizes of diamonds. The pattern continues.

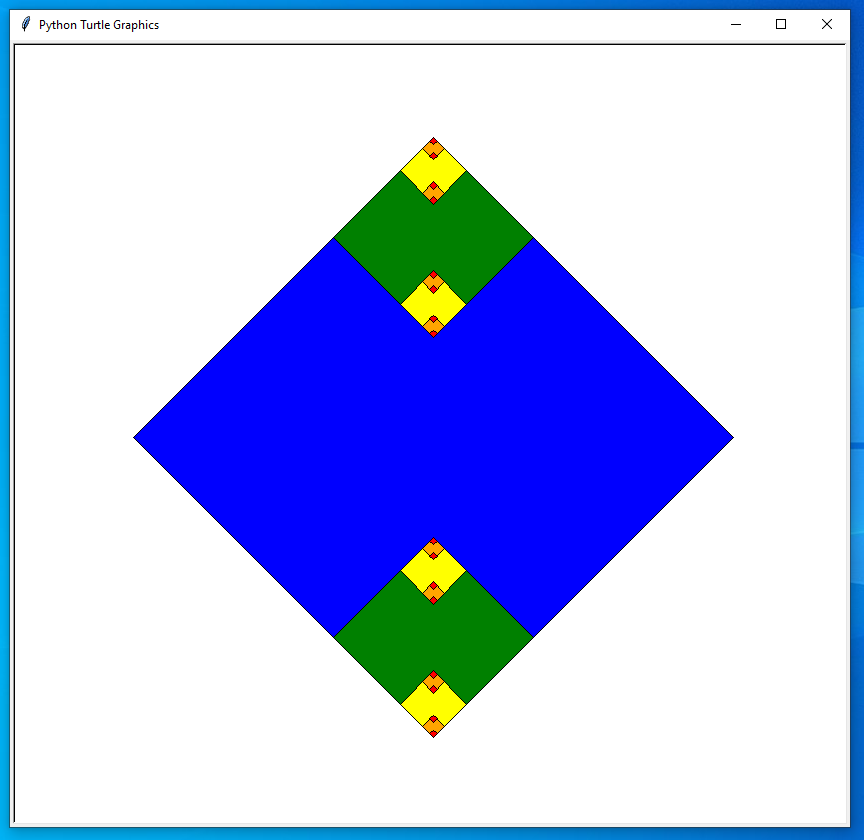

• Level 4: The pattern continues.

Starting Code

Download assignment-8.py and rename it according to the instructions above. Examine the code carefully until you fully understand it.

Note: the colormap global variable contains a list of five colors. If level is an integer between 0 and 4 inclusive, colormap[level] accesses the color in that position. For example, if level had the value 3, colormap[level] would be "green".

Requirements and Grading

• 20 points - The Level 0 drawing is correct (5 points, all or nothing) and the color is correct (5 points, all or nothing).
• 20 points - The Level 1 drawing is correct (10 points, all or nothing) and the colors are correct (10 points, all or nothing).
• 10 points - The Level 2 drawing is correct, even if the colors are not (all or nothing).
• 10 points - The Level 3 drawing is correct, even if the colors are not (all or nothing).
• 10 points - The Level 4 drawing is correct, even if the colors are not (all or nothing).
• 10 point - No changes are made to the provided program except to add the missing function and its relevant comments.
• 20 points - The solution uses recursion appropriately to solve the problem.
