Collecting Soil Biofilms by the Buried Slide Technique

Student Version (go to Instructor Version)

Introduction

This exercise describes a method for collecting soil biofilms on glass slides through direct contact between soil and microscope slide, in the field or in the laboratory.

This technique is described in “Methods for Studying the Ecology of Soil Micro-organisms” (Parkinson et al.1971). In this exercise a microscope slide is placed in contact with soil. Organisms representative of the soil population will form a biofilm on the slide. Parkinson (1971) cautions not to assume that the microbial population observed on the glass slide is similar to that of the undisturbed soil. The glass slide alters the dynamics of the soil ecosystem by providing a new and novel substrate. The organisms that colonize the slide can be assumed to be soil microorganisms, but the proportion, distribution and relationships of the organisms may be drastically altered.

Supplies Needed:

Materials

Quantity
Description
As Necessary 1 x 3 inch glass microscope slides, cleaned and sterile
As Necessary Staining kits

Equipment

Quantity
Description
1 sterile forceps
1 long bladed spatula or knife
1 microscope
1 clay or plastic flowerpot or a plastic cup

Instructions

  1. Clean the microscope slides with acid alcohol and heat sterilize them in a Bunsen burner flame or wrap them in aluminum foil and sterilize them by autoclaving.
    Note: To enumerate the cells collected from soil, use preprinted slides such as those available from Erie Scientific Co. These slides have circular areas of known surface area (πr2 ) (Figure 1).
  2. Preprinted slides with clear spots of known diameter may be used to harvest biofilms
    Permissions

    Image used courtesy of Erie Scientific Company http://www.eriesci.com/index.aspx

    Figure 1. Preprinted slides with clear spots of known diameter may be used to harvest biofilms.
  3. Choose an inconspicuous site for placing the microscope slides so that they will not be intentionally or inadvertently disturbed. Alternatively, bring a soil into the laboratory by using a garden bulb planter (Figure 2). Select a soil sampling site, then twist the bulb planter into the soil to remove a soil core. Place this core into a clay pot, plastic pot or a plastic cup of appropriate size. If a plastic cup is used, be sure to punch some holes in the bottom of the cup to permit water drainage (unless, of course, there is interest in sampling biofilms from waterlogged and anaerobic soil).

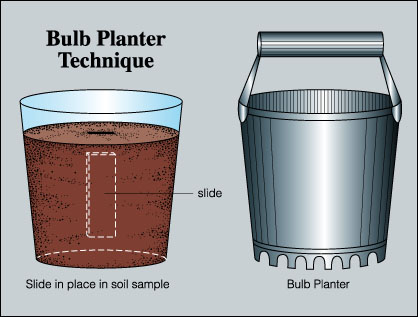

  4. Bulb planter technique for obtaining a soil sample
    Permissions

    J. Lennox, Penn State Altoona

    Figure 2. Bulb planter technique for obtaining a soil sample

  5. With a sterile knife or spatula, make a slit in the soil core sample (dip knife or spatula blade in alcohol and flame). Widen the slit by moving the knife from side to side.
  6. Carefully insert one or more sterile slides into the slit using sterile forceps.
  7. Firm the soil up around the slide to ensure that the soil is in close contact with the slide. Then lightly water the soil.
  8. Cover the pot or cup with a Petri dish lid or plastic wrap and label it. If this exercise is being carried out in the field, mark the site inconspicuously so as not to attract unwanted attention.
  9. The slides should remain in place for 1 - 3 weeks, after which the slides may be removed from the soil. This is best done by removing the soil core from its container and carefully breaking the soil away from the slide.
  10. Wipe one side of each slide clean with a paper towel.
  11. The slide may now be stained for observation under the microscope. The “Flow Through Gram Stain” described elsewhere in this collection, or any of a number of stains can be used for visualizing the soil biofilms. Ruthenium red and Alcian blue are recommended for staining extracellular polysaccharides.

Classical simple and differential stains such as Crystal violet, Gram stain and spore stain may be used on these slides.

Note: Since biofilms are 98% water, staining without heat fixation is preferred. Heat fixation usually employed to attach cells to the slide, dehydrates the biofilm so that its structure is greatly altered.

Observations:

  1. View the slide under high dry or oil immersion microscopy.

  2. Can you distinguish the biofilm cells and matrix from the inorganic soil components which may be adhering to the slide?

  3. Is it possible to see the matrix material in which the cells are embedded?

  4. Is there any discernable organization to the biofilm on the slide? Are the cells uniformly distributed or are they clustered in microcolonies?

  5. Is there any evidence of channels within the biofilm?

  6. Is there any association between the organic and inorganic components of the biofilm?

Questions:

  1. In viewing the stained or unstained slide under the microscope, how do you know a biofilm is present?
  2. Why is the biofilm on the slide not necessarily representative of the biofilm in the soil?

References

Microorganisms in surface films from soil crumbs
Harris PJ
Soil Biol Biochem 1972; 4:105-106

Methods for Studying the Ecology of Soil Micro-organisms
in Parkinson D, Gray TRG, Williams ST (eds.)
Blackwell Scientific Publications, Oxford, 1971, pp 30-31
